PBIR Folder Renamer for Power BI Reports¶

Rename Power BI report page and visual folders from GUIDs to human-readable names based on their metadata.

Python 3.7+ - Cross-platform, no external dependencies required!

The Problem¶

PBIR format saves reports with GUID-based folder names:

MyReport.Report/definition/pages/
└── 50dd411cef39de30a198/              # Page folder (meaningless GUID)
    └── visuals/
        └── 2402e6f6ec7ad97e9443/       # Visual folder (meaningless GUID)

Makes code reviews in GitHub/Azure DevOps impossible to understand.

The Solution¶

Renames folders to readable format:

MyReport.Report/definition/pages/
└── Sales_Overview_50dd411cef39de30a198/        # Now you know it's the Sales Overview page!
    └── visuals/
        └── clusteredBarChart_2402e6f6ec7ad97e9443/  # Now you know it's a bar chart!

Now your git diffs and pull requests make sense.

How to Run¶

Step 1: Download the script¶

Save rename_pbir_folders.py anywhere in your repo (root folder, scripts/, tools/, wherever works for you).

Step 2: Open a terminal¶

In VS Code: Terminal → New Terminal (or press Ctrl+`)

Step 3: Run it¶

The command is python followed by the path to the script. How you write that path depends on where you saved the script.

Option A: Drag and drop (easiest)

Type python in your terminal (with a space after)
Drag the script file from Explorer into the terminal
Press Enter

The terminal pastes the full path for you.

Option B: Navigate to the script first

cd path/to/folder/containing/script
python rename_pbir_folders.py

Option C: Ask GitHub Copilot

In VS Code with Copilot, just ask:

"Run the rename_pbir_folders.py script"

Copilot will figure out the correct path and run it for you.

The script auto-detects all .Report folders in your repo. If it finds one report, it processes it automatically. If it finds multiple, you get a numbered list to choose from:

✓ Found 3 reports:

  [1] reports/Sales.Report
  [2] reports/Marketing.Report
  [3] reports/Finance.Report

  [0] Process ALL reports

Select a report (0 for all, or 1-3):

Pick a number, or enter 0 to rename folders in all reports at once.

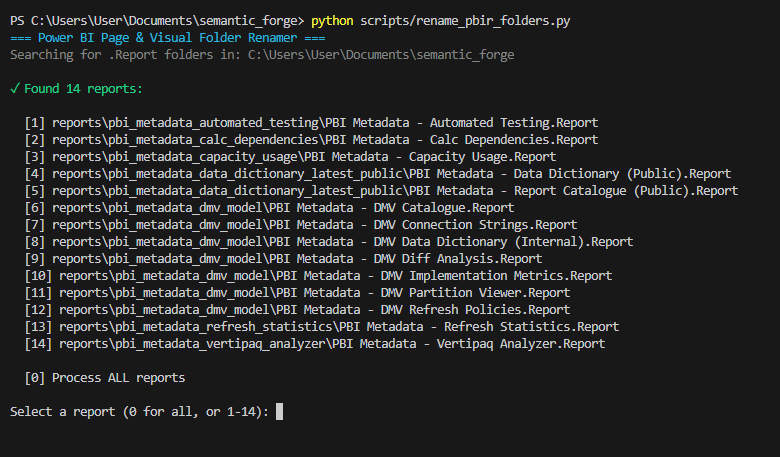

Running the script and selecting a report

Alternative: Specify a report directly¶

python rename_pbir_folders.py "path/to/MyReport.Report"

What It Does¶

1. Pages: Renames to `{displayName}_{originalGUID}` format¶

Example:

50dd411cef39de30a198 → Sales_Overview_50dd411cef39de30a198

Reads page.json to extract displayName and prepends it to the existing folder name.

2. Visuals: Renames to `{visualType}_{originalGUID}` format¶

Example:

2402e6f6ec7ad97e9443 → clusteredBarChart_2402e6f6ec7ad97e9443

Reads visual.json to extract visualType and prepends it to the existing folder name.

Requirements¶

Python: 3.7 or higher
No external packages required (uses only standard library)
Works on: Windows, macOS, Linux

Installing Python¶

Windows: 1. Download from python.org/downloads 2. Run installer, check "Add Python to PATH" 3. Verify: Open Command Prompt, type python --version

macOS:

brew install python3

Or download from python.org/downloads

Linux (Ubuntu/Debian):

sudo apt update
sudo apt install python3

Check if Python is already installed:

python --version
# or
python3 --version

Output Example¶

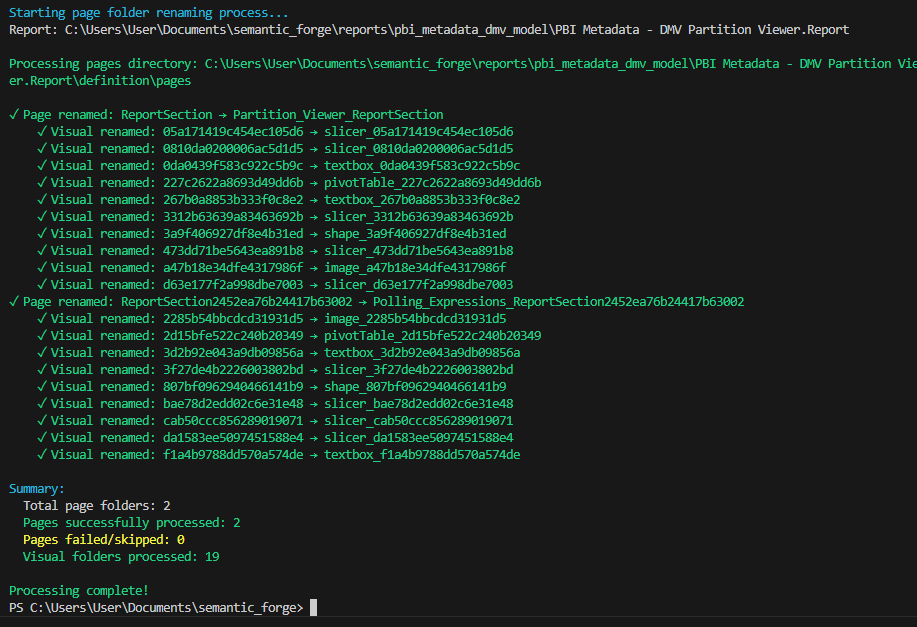

Terminal output after running the script

=== Power BI Page & Visual Folder Renamer ===
Processing pages directory: C:\MyProject\MyReport.Report\definition\pages

✓ Page renamed: 50dd411cef39de30a198 → Sales_Overview_50dd411cef39de30a198
    ✓ Visual renamed: 2402e6f6ec7ad97e9443 → clusteredBarChart_2402e6f6ec7ad97e9443
    ✓ Visual renamed: 33956a0230202bce8bc1 → card_33956a0230202bce8bc1
✓ Page renamed: 8a889a93607ccc246a98 → Customer_Analysis_8a889a93607ccc246a98
    ✓ Visual renamed: 4c00c3e8380fe1740319 → tableEx_4c00c3e8380fe1740319

Summary:
  Total page folders: 2
  Pages successfully processed: 2
  Visual folders processed: 3

Safety¶

✅ This is cosmetic and safe: - Only renames folders, doesn't modify JSON content - Power BI Desktop reads reports by JSON structure, not folder names - Completely reversible (can always re-run with different names)

✅ Edge cases handled: - Duplicate names (script warns and skips) - Special characters in names (sanitized to file-system safe) - Missing metadata (script warns and skips) - Already-correct names (script skips silently)

Troubleshooting¶

"Pages directory not found"¶

Ensure you're pointing to a .Report folder (not .SemanticModel)
Check that definition/pages/ exists within the folder
Verify you're using PBIP format (not legacy .pbix)

"Target folder already exists"¶

Two pages/visuals have the same display name
Manually rename one in Power BI Desktop first to make them unique

"displayName cannot be sanitized"¶

Display name contains only special characters
Rename in Power BI Desktop to include alphanumeric characters

Python "command not found" (macOS/Linux)¶

# Try python3 instead
python3 rename_pbir_folders.py

Why This Matters¶

Microsoft's PBIR Announcement¶

On November 17, 2025, Microsoft announced that PBIR will become the default Power BI report format in January 2026.

PBIR enables: - ✅ Version control (Git) - ✅ Code reviews (Pull Requests) - ✅ CI/CD pipelines - ✅ Automated testing - ✅ Team collaboration

But GUID folder names make code reviews impossible.

Your pull request shows:

Modified: definition/pages/50dd411cef39de30a198/page.json

What page is that? Nobody knows without opening the file.

With readable folder names:¶

Modified: definition/pages/Sales_Overview_50dd411cef39de30a198/page.json

Now reviewers instantly understand what changed.

Microsoft's Announcement: PBIR will become the default Power BI Report Format (Rui Romano, November 17, 2025)
Microsoft PBIR Docs: Power BI Projects - Report Format

Contributing¶

Found a bug? Have a suggestion? Open an issue or submit a pull request!

License¶

MIT - Use freely in your projects

Get Ready for January 2026¶

PBIR is becoming mandatory. Start using readable folder names now, before your team is forced to deal with GUID-based code reviews.
